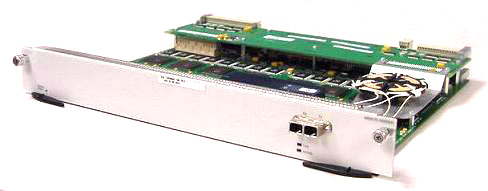

Acadia 10G Ethernet Media Module

The 10-Gigabit Module is intended to be used as a "BackBone" connecting two Layer2/Layer3 switches. The module includes the following features
• Layer 2 and Layer 3 Switching
• 10-Gigabit Ethernet transmission rate
• Common end-to-end transport protocol optimized for IP applications
• High capacity, high availability integrated solution for the P580 and P882 platforms

The 10-Gigabit Module is a double height module, occupying two chassis slots.

Ideal applications for 10G Ethernet links include high-volume storage-area networks and back-up segments, IP telephony, Gigabit-backed main distribution facilities, enterprise metropolitan-area networks (MAN), points of presence interconnected via 1G trunks, real-time audio and video multicasting, and data centers with switching and routing cores leveraging many 1G trunks.

Layer 3 Features
• Internet Protocol (IP) v4, Internetwork Packet Exchange (IPX), and AppleTalk routing
• IP routing protocols: – Open Shortest Path First (OSPF) v2 – Routing Information Protocol (RIP) v1/v2
• 16,000 routes
• 24,000 Address Resolution Protocol (ARP) table entries
• IP multicast routing:
    • Distance Vector Multicast Routing Protocol (DVMRP)
    • Internet Group Management Protocol (IGMP) v2
    • IGMP v2 snooping
    • Cisco Group Management Protocol (CGMP)
• IP resiliency:
    • Virtual Router Redundancy Protocol (VRRP)
    • Internet Control Message Protocol (ICMP) router discovery
• IP filters: 512 ACLs; actions: prioritize, drop, and forward
• Differentiated Services (DiffServ)

Layer 2 features
• 24,000 MAC addresses
• Spanning Tree per VLAN
• Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1Q: 512 VLANs, port-based VLANs
• IEEE 802.1p with eight hardware queues
• Ethernet link aggregation
• Rate limiting per port
• Broadcast and multicast limiting

Network Management Software
• Network management software
• Web-based network management interface
• SNMP v3
• Lightweight Directory Access Protocol (LDAP) client
• Telnet
• RS-232 and 10Base-T in-band
• Mini-RMON
• Port mirroring
• Remote Authentication Dial-In User Service (RADIUS) Client
• MIB support:
    • LEC MIB
    • RFC 1483 MIB
    • MIB II
