Acadia B10/B100 24-Port Ethernet Media Module

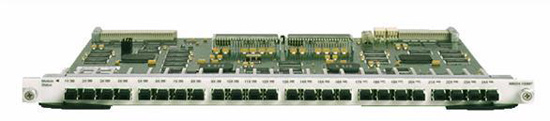

24-Port 10/100BASE-TX module with RJ-45 connectors
The RJ-45 24-port 10/100 media module has 24 RJ-45 connectors. Each connector supports both Ethernet (Base10) and Fast Ethernet (Base100) connections.

24-Port 100BASE-FX module with MT-RJ connectors
The MT-RJ 24-port 100-FX media module has 24 MT-RJ connectors. Each connector supports Fast Ethernet (Base100-FX) connections.

Layer 3 Features
• Internet Protocol (IP) v4, Internetwork Packet Exchange (IPX), and AppleTalk routing
• IP routing protocols: – Open Shortest Path First (OSPF) v2 – Routing Information Protocol (RIP) v1/v2
• 16,000 routes
• 24,000 Address Resolution Protocol (ARP) table entries
• IP multicast routing:
    • Distance Vector Multicast Routing Protocol (DVMRP)
    • Internet Group Management Protocol (IGMP) v2
    • IGMP v2 snooping
    • Cisco Group Management Protocol (CGMP)
• IP resiliency:
    • Virtual Router Redundancy Protocol (VRRP)
    • Internet Control Message Protocol (ICMP) router discovery
• IP filters: 512 ACLs; actions: prioritize, drop, and forward
• Differentiated Services (DiffServ)

Layer 2 features
• 24,000 MAC addresses
• Spanning Tree per VLAN
• Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1Q: 512 VLANs, port-based VLANs
• IEEE 802.1p with eight hardware queues
• Ethernet link aggregation
• Rate limiting per port
• Broadcast and multicast limiting

Network Management Software
• Network management software
• Web-based network management interface
• SNMP v3
• Lightweight Directory Access Protocol (LDAP) client
• Telnet
• RS-232 and 10Base-T in-band
• Mini-RMON
• Port mirroring
• Remote Authentication Dial-In User Service (RADIUS) Client
• MIB support:
    • LEC MIB
    • RFC 1483 MIB
    • MIB II

Interfaces
• 10/100BASE-TX with RJ-45 connectors
• 100BASE-SX module with MT-RJ connectors
    • Wavelength: 850 nm
    • Maximum distance: 550 m (1,804.46 ft) over 50 µm multimode fiber (MMF); 260 m (853.02 ft) over 62.5 µm MMF
• 100BASE-LX module with MT-RJ connectors
    • Wavelength: 1300 nm
    • Maximum distance: 550 m (1,804.46 ft) over 50 µm multimode fiber (MMF); 440 m (1443.57 ft) over 62.5 µm MMF
• 100BASE-ELX module with MT-RJ connectors
    • Wavelength: 1550 nm
    • Maximum distance: 70 km (43.49 mi) over 9 µm singlemode fiber (SMF)
