Acadia B10/B100 48-Port Ethernet Media Module

48-Port 10/100BASE-TX module with RJ-45 connectors

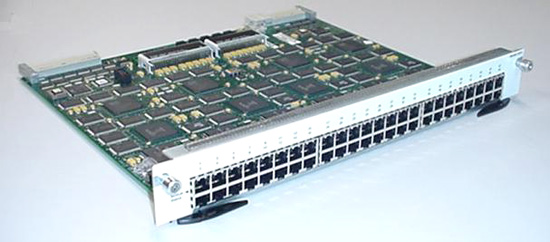

The RJ-45 48-port 10/100 media module has 48 RJ-45 connectors. Each connector supports both Ethernet (Base10) and Fast Ethernet (Base100) connections. It is a double height module, occupying two chassis slots.

48-Port 10/100BASE-TX module with RJ-21 Telco connectors
The Telco 48-port 10/100 media module has four CAT-5 telco connectors, commonly referred to as RJ71. Each telco connector supports 12 Ethernet or Fast Ethernet connections. It is a single height module, occupying a single chassis slot.

Layer 3 Features
• Internet Protocol (IP) v4, Internetwork Packet Exchange (IPX), and AppleTalk routing
• IP routing protocols: – Open Shortest Path First (OSPF) v2 – Routing Information Protocol (RIP) v1/v2
• 16,000 routes
• 24,000 Address Resolution Protocol (ARP) table entries
• IP multicast routing:
    • Distance Vector Multicast Routing Protocol (DVMRP)
    • Internet Group Management Protocol (IGMP) v2
    • IGMP v2 snooping
    • Cisco Group Management Protocol (CGMP)
• IP resiliency:
    • Virtual Router Redundancy Protocol (VRRP)
    • Internet Control Message Protocol (ICMP) router discovery
• IP filters: 512 ACLs; actions: prioritize, drop, and forward
• Differentiated Services (DiffServ)

Layer 2 features
• 24,000 MAC addresses
• Spanning Tree per VLAN
• Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1Q: 512 VLANs, port-based VLANs
• IEEE 802.1p with eight hardware queues
• Ethernet link aggregation
• Rate limiting per port
• Broadcast and multicast limiting

Network Management Software
• Network management software
• Web-based network management interface
• SNMP v3
• Lightweight Directory Access Protocol (LDAP) client
• Telnet
• RS-232 and 10Base-T in-band
• Mini-RMON
• Port mirroring
• Remote Authentication Dial-In User Service (RADIUS) Client
• MIB support:
    • LEC MIB
    • RFC 1483 MIB
    • MIB II
